GLAZEGUARD® 1000 IR

Lightweight & Water Resistant Infill Solution

Citadel’s Glazing Infill Panels are the perfect complement or replacement for glass in storefront, curtain wall, and window applications.

Features & Benefits

Third-party tested
Water and impact resistant options.
Easily cut-to-size in the field (or from the manufacturer)
Low maintenance
Quick lead times (2 weeks or less)
Panel composition warranty (10 years)

FINISHES

Available in a variety of colors and finishes:

Kynar 500^® — long lasting, benchmark for quality
Anodized — several options to match storefront and curtain wall systems
Polyester — economical and durable

View Color Chart >

Compare our Glazing Infill Panels

PRODUCT

FEATURES

COMPOSITION

THICKNESS

R-VALUE

WEIGHT

GlazeGuard 1000 IR

FEATURES

Impact Resistant
Water Resistant
Meets HVHZ Requirements
ASTM E84
ASTM E72

COMPOSITION

Smooth Aluminum . Face and Back
Polypropylene Stabilizers
Polypropylene Core

THICKNESS

1″

R-VALUE

2.72

WEIGHT

Approximately
1.89 lbs per ft²

GlazeGuard 250WR

FEATURES

Water Resistant
ASTM E84
ASTM E72

COMPOSITION

Textured or Smooth Aluminum Face and Back
Polypropylene Core

THICKNESS

¼”

R-VALUE

1.24

WEIGHT

Approximately
0.61 to 1.00 lbs per ft²

GlazeGuard 1000 WR+

FEATURES

Water Resistant
Increased Thermal Value
ASTM E84
ASTM E72

COMPOSITION

Textured or Smooth Aluminum Face and Back
Polypropylene Stabilizers
EPS or ISO Foam Core

THICKNESS

1″

R-VALUE

EPS: 4.19
ISO: 6.13

WEIGHT

Approximately
0.80 to 1.23 lbs per ft2

GlazeGuard 1300 IR*

*ASTM 518 has a value of 2.3.

FEATURES

Florida Product Approval for use in Level D, Level E, and HVHZ
Small and Large Missile
Impact Resistant Fits Standard
Curtain Wall Systems
ASTM E84 ASTM C1363

COMPOSITION

Smooth Aluminum . Face and Back High Density
Polypropylene Stabilizers
High Density Polypropylene Cores

THICKNESS

1-5/16″

R-VALUE

2.2

WEIGHT

Approximately
2.35 lbs/ft2

Ready to Choose the Ultimate in Performance and Get Everything You Need?

GLAZEGUARD EDGES

GLAZEGUARD WITH WRAPPED EDGES

1-4 Edges Wrapped Per Project Requirements
Overall Panel Thickness: Up to 3 ½”
Smooth Finishes
Sealed with Silicone Sealant
Polypropylene Stabilizers
EPS or ISO Foam Core

GLAZEGUARD WITH OFFSET EDGES

Offset Available in Various Dimensions
Overall Panel Thickness: Up to 3 ½”
Foam Thickness Varies to Meet Size and R-Value Requirements
Smooth and Textured Finishes
Polypropylene Stabilizers
EPS or ISO Foam Core

GLAZEGUARD WITH WRAPPED & OFFSET EDGES

All Edges Wrapped on Offset Section
Shipped Separately from Standard Glazing Panel
Offset Section Adhered in the Field
Smooth Finishes
Polypropylene Stabilizers
EPS or ISO Foam Core

DATASHEETS & DOWNLOADS

Product Data Sheet
(.pdf)

Guide Spec
(.docx)

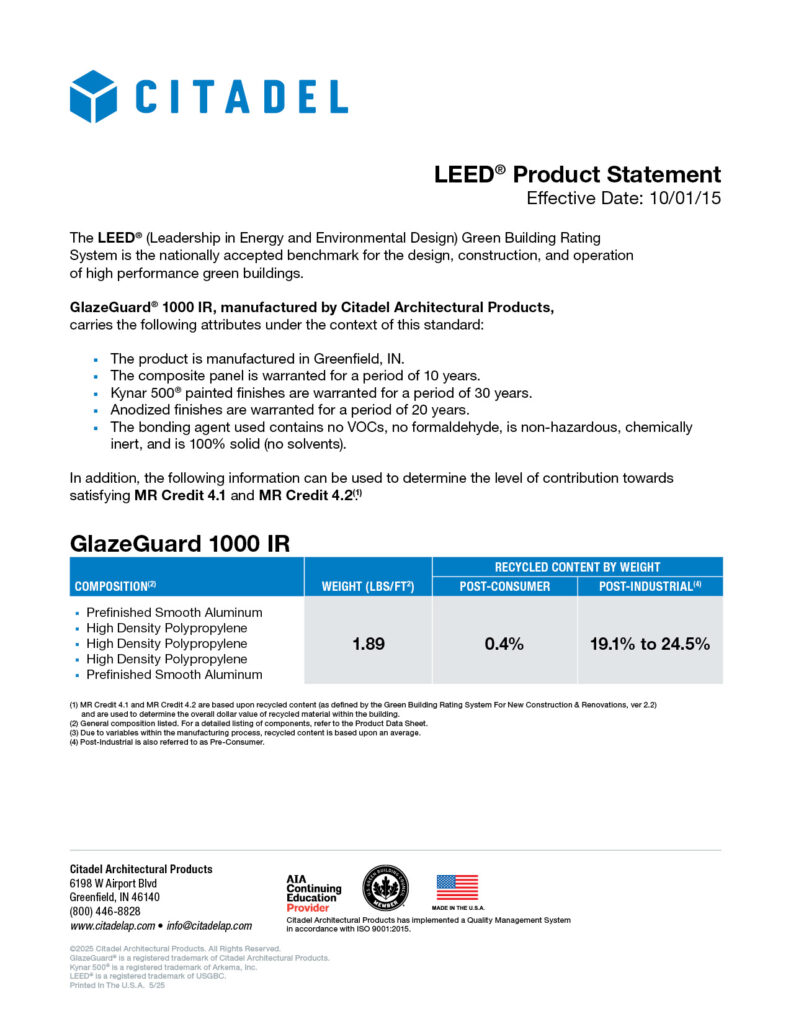

LEED Information
(.pdf)

Sample Warranty
(.pdf)

GlazeGuard – Glazing Infill Panels
(.pdf)
